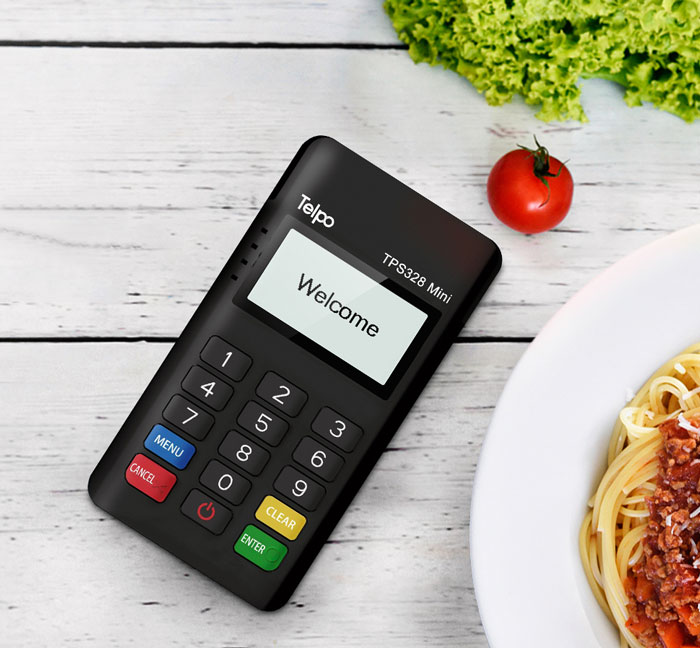

mPOS TPS328 Mini
Telpo TPS328 is EMV approval mPOS, inbuilt NFC/RF card, Magstripe, and IC card reader.
Flexible mPOS device offers different payment options for customers.
Secure Mobile Payment
A fully encrypted card reader can ensure account information and credit card security.
Certificates: EMV, PCI, Paywave, Paypass, etc
Bluetooth Connection
Connecting intelligent terminals via Bluetooth, and provide many convenient services
include collection, payment, transfer, and so on combined with APP client-side.
Applications
It is well compatible with external access to the Cash register system,
Electronic Voucher Distribution, E-Voucher, E-Payment, E-Wallet, Money Transfer,
Mobile Money, Mobile Payment, Mobile Recharge in Banks, Securities centers,
Retail Stores, Restaurants, Lotteries, Clothing stores.
OS | TPOS |
Processor | 32-bit secure processor |
Memory | 64KB RAM, 512KB Flash |
Display | 128 * 64, LCD, Backlight |
Keypad | 10 alphanumeric keys, 5 function keys |
Magnetic Card Reader (Optional) | Track 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7813 |
Smart Card Reader (Optional) | ISO 7816 |
Contactless Card Reader (Optional) | ISO14443 Type A/B |
Communications | Bluetooth(Support EDR/BLE) |
Indicator Light | 4 LED |
Peripheral Ports | 1 Mini-USB |
Audio | Buzzer single tone beeper |
Power Supply | 5V/0.5A |
Battery | 3.7V/240mAh, Li-ion |
Dimensions (mm) | 116.5 (L)*63 (W)*15.1 (H) |
Weight | 130g |
Environmental | Operating temperature: -5℃~50℃ Relative humidity: 5%~90%(non-condensing) Storage temperature: -25℃~70℃ |
Certification | EMV PCI Paypass Paywave |
