Temperature Measurement Terminal

TPS530T

Temperature Measurement Terminal

Telpo Temperature Measurement Terminal TPS530T is designed to detect the skin-surface temperatures and thus can be used for rapidly and preliminary screening in office buildings, communities, buses, schools, and other areas, with accuracy up to 0.3. The unattended temperature check method can not only find fever in time but also reduce cross-infection.


Temperature Measurement Terminal



Main Features


1. Real-time Infrared Temperature Measurement

Measurement site: wrist

Measurement time: <1s

Measurement distance: <10cm

Measurement accuracy: ± 0.3 ℃


2. Personnel Attendance and Access Control

Support NFC card reading, accurate identification of personnel identity

Support ISO14443 Type A/B, Mifare, ISO18092 compliant



3. Excellent Performance and Large Memory

Android OS

Up to 2GB DDR+16GB eMMC

100K-200K employee personal information


5. Flexible Deployment

Wall-mounted, Stand for Turnstile, Desktop Stand, Tall Stand


6.Telpo Cloud

Attendance Management, Abnormal Monitoring, Device management, Data Statistics


7. Applications

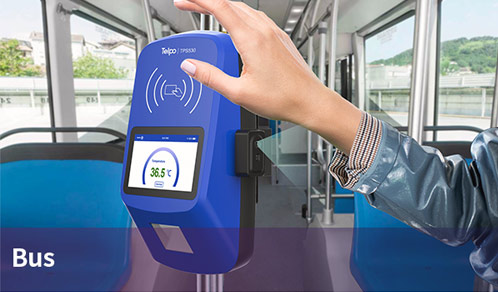

Enterprise, School, Bus, Cateferia,Community, Hotel, Factory, Government


Temperature Measurement Terminal

Temperature Measurement Terminal


More Applications

Temperature Measurement TerminalTemperature Measurement Terminal
Temperature Measurement TerminalTemperature Measurement Terminal



Specification

OSAndroid 7.0 or above
ProcessorQuad-Core 1.1GHz or above
Memory1GB   DDR, 8GB eMMC
2GB DDR, 16GB eMMC (Optional)
Display5-inch, 1280*720
Contactless   Card ReaderISO14443   Type A/B, Mifare, ISO18092 compliant
EMV Contactless L1, Paywave, Paypass (Optional)
Felica(Optional)
Peripheral PortsCircular   Connector:1 RS232+ 1 RS485
Circular Connector:1 DC Charge
1 Micro USB
2 SIM, 2 SAMs, 2 SAMs, up to 8 SAMs (Optional)
CommunicationsWCDMA/GPRS/WIFI/Bluetooth
LTE (Optional)
GPS (Optional)Built-in
Temperature MeasurementMethod   : Non-contact
Distance : 0 ~10cm
Time        : <1s
Range     : 32 ~ 42.9 ℃
Accuracy : ± 0.3 ℃
Built-in 1D/2D Barcode ReaderSoft Decoding
Hard Decoding(Optional)
AudioDigital   Audio Speaker
Dimensions (mm)285 (L)*168 (W)*95 (H)
Power SupplyDC  9V~40V
MDM (Optional)Mobile Device Management
CertificationCE
