Place of Origin: foshan, China
Model Number: TPA310
Material: Plastic
OEM/ODM Availability: Yes
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Color: BLACK, or custom
Package: 1pcs/carton, with accessories
Optional: MDM system
1. Support USB, and Bluetooth communication. Compared with an ordinary Bluetooth printer, our printer is more durable with a transparent cover large paper container for you to store 58*50 mm/ 2.28*1.97 inch thermal-sensitive paper .
2. Paper type: thermal-sensitive paper; Paper width: 58 mm/ 2.28 in; Paper roll diameter: 50 mm/ 1.97 in;
3. Support battery status display, automatic sleep, automatic wake-up, energy saving, and extending battery life function.
4. Support multiple languages, bitmap downloading and printing, and font-A and font-B.
5. Support Windows, and Linux operating system. Compatible with different major equipments, LOGO downloading and printing, and 1D and 2D bar code printing.
6. It is of easy operation, light weight, small size, easy paper replacement, and convenient use.
Applications:
TPA310 is widely used in the meter reading industry, retail store, insurance, warehousing, logistics, and other industries. It support windows + Android + IOS. When you make an order with the phone, TPA310 can print immediately.
Welcome to consult it.
| Printing Performance | |
| Print Way | Thermal line printing |
| Print Density | 8 dots/mm, 384 dots/line |
| Effective Print Width | 48mm |
| Print Speed | Max. 60mm/s |
| Character/Picture/Barcode | |
| Character | ANK character set:12×24dot,1.50(W)×3.00(H)mm. National standard 1 and 2 grade Chinese character library :24×24dot, 3.00(W)×3.00(H)mm custom character is accepted. |
| Graph | Print by different place of density points, buffer: 6K bytes |
| Barcode | Support barcode printing with UPC-A, UPC-E, EAN-13, EAN-8, CODE39,QR code, etc |
| Detection Mode | |
| Lack of Paper Alarm | Support |
| Overheating Protection | Support |
| Interface Parameters | |
| Serial Interface | MINI USB socket, baud rate：115200bps |
| Bluetooth Port | Support |
| Battery | |
| Polymer Battery | 7.4V 1100mAh |
| Reliability | |
| Printer Head Life | 6x10e6 characters |
| Printing Paper | |
| Paper Type | Common thermal paper |
| Printing Paper Width | 57.5±0.5mm |
| Paper Thickness | 0.06～0.08 mm |
| Scroll Size | 57×30mm |
| Paper Loading Method | Easy to load paper |
| Cutting Paper Way | Manual tearing |
| Physical Property | |
| Operating Temperature/Humidity | 0～55℃/10～80％（RH） |
| Storage Temperature/Humidity | -20～60℃/10～90％（RH） |
| Appearance Size | 115 x 83 x 45 mm |
| Performance may be impacted by bar code quality and environmental conditons | |

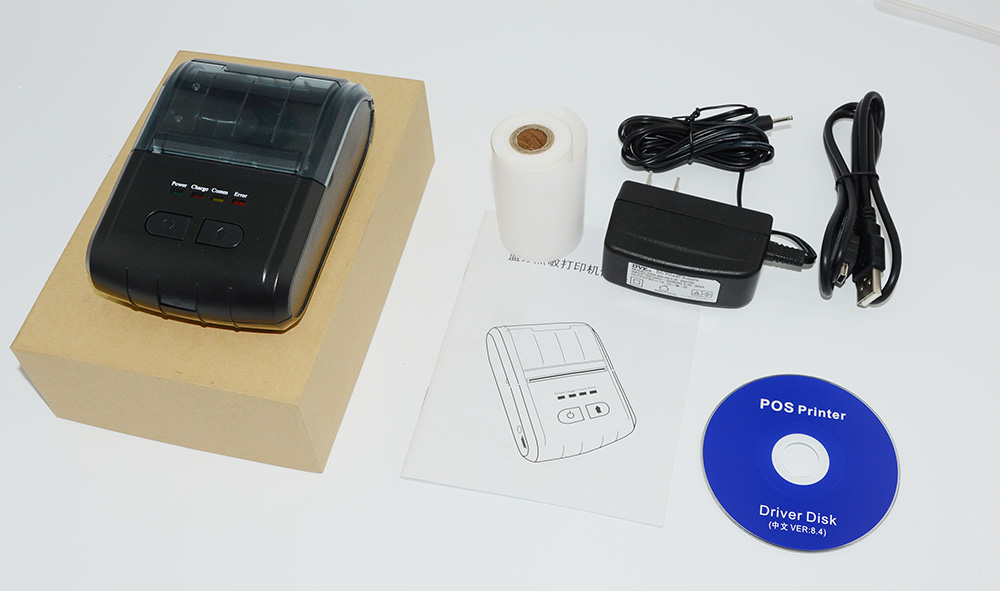

Package
