Smart QR-code Reader POS

TPS508

Smart QR-code Reader POS

Smart QR-code Reader POS

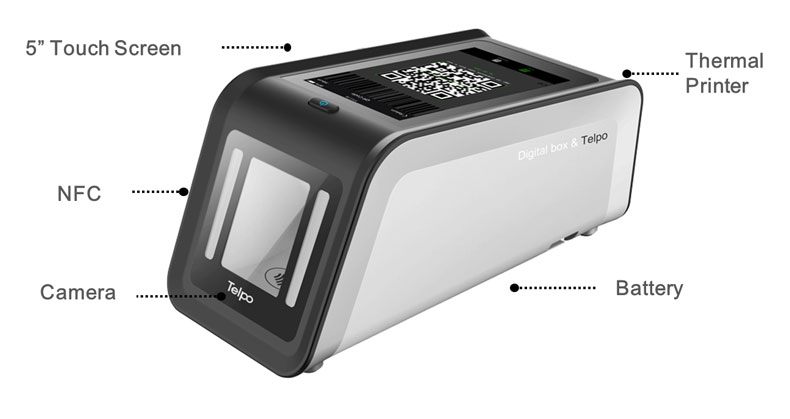

Retailers and consumers are feeling the convenience of QR code payment. Telpo brings the smart POS terminal TPS508 for QR code payment--TPS508. TPS508 is a smart QR code reader POS, which recognizes QR-code on mobile phone and automatically collects customer fees. It is widely used in supermarkets, restaurant, and shopping mall and so on.


Smart QR-code Reader POS


Android 7.1 OS & Quad-core

POS QR code reader TPS508 has large storage and leading Android system. TPS508 is combined with 1GB RAM and 8GB ROM and operated with Android 7.1 OS so that it can smooth operate all kinds of the payment system.


Smart QR-code Reader POS

Smart QR-code Reader POS

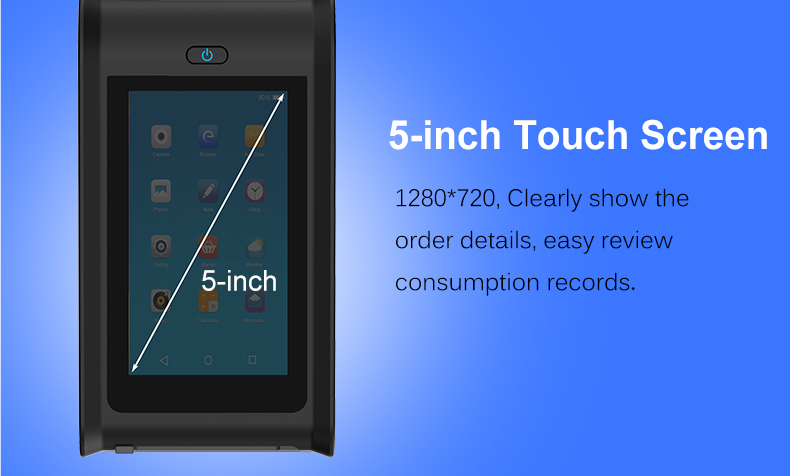

5-inch Touchable Screen

Different from most of the barcode scanner, TPS508 is a 5-inch touch screen with resolution 1280*720. It clearly displays the amount of each order, so that users can review the records of each payment.


Smart QR-code Reader POS



Speedy Code Scanner

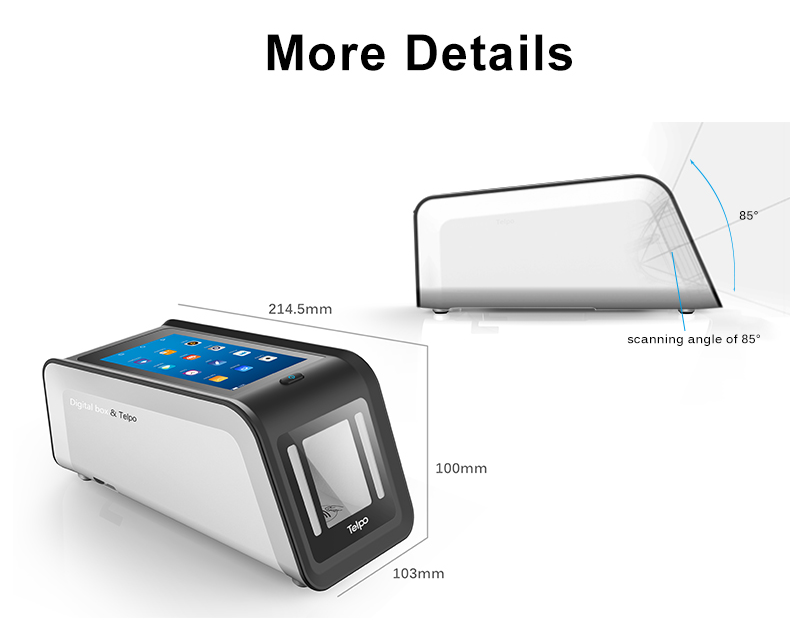

Scanning QR-code is the main function of the TPS508. It can accept a scanning angle of 85 degree.With a wide-angle barcode reading camera, TPS508 can quickly identify the QR code. Efficient QR code recognition allows customers saving time in the queue.

The entire process does not require the operation of the cashier, and the customer can self-service.

Smart QR-code Reader POS

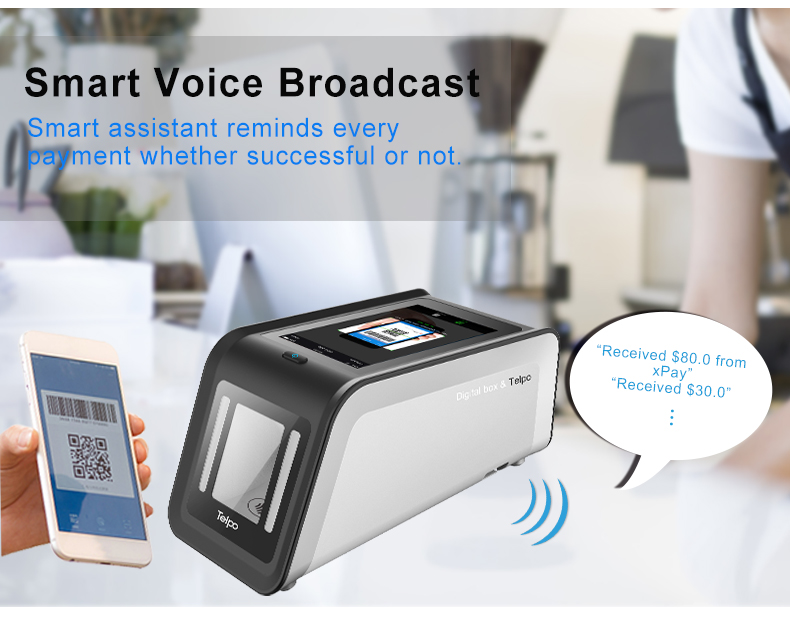

Smart Voice Broadcast

The TPS508 automatically alerts you if the payment is successful or not. It is a smart assistant for retailers.


Smart QR-code Reader POS

Contactless Reader

Contactless readers can be installed and can be used to read NFC cards, such as membership cards, loyalty cards, etc.


Smart QR-code Reader POS


Thermal Printer

It is also important to print receipts for POS terminals. The TPS508 can support the 58mm thermal printer. The lifespan of the print head has up to 50 km.


Smart QR-code Reader POS


Rich Interfaces

Built-in Rich interfaces can be linked to a variety of devices, such as cash registers, cash drawers, 80mm thermal printers, USB flash drives, PINPAD.


Smart QR-code Reader POS

Good Connectivity

For maintaining good information transmission, TPS508 offers WI-FI, 4G, Bluetooth, Ethernet, to ensure the owner timely obtain payment details.


Smart QR-code Reader POS


This system of QR Code payment applies to all kinds of scenarios such as supermarkets, restaurants, shopping mall, clothes shop, drugstore, etc.




Specification

Smart QR-code Reader POS





OSAndroid 7.1 or above
ProcessorQuad-Core 1.1GHz or above
Memory1GB DDR, 8GB eMMC, Ext. TF card slot
    2GB DDR, 16GB eMMC (Optional)
Display5-inch, 1280*720 or above
Thermal Printer (Optional)Paper width 58mm, Φ40mm
Contactless Card Reader (Optional)ISO14443 Type A/B, Mifare, ISO18092 compliant
Built-in 1D/2D Barcode ReaderSoft Decoding
    Hard Decoding (Optional)
CommunicationsEthernet/WiFi/Bluetooth
    LTE/WCDMA/GPRS (Optional)
Peripheral Ports2 USB Host, 1 micro USB, 1 RJ45, 1 RJ11
AudioDigital Audio Speaker
Power Supply9V/2.5A
Battery7.4V/2500mAh, Li-ion (Optional)
Others1 Power Key
CertificationCE,BIS




Smart QR-code Reader POS
