Retail Wireless QR-code Payment Mobile POS

TPS320

Retail Wireless QR-code Payment Mobile POS

In the tedious work, the waiters usually overwhelmed.

Therefore, your business needs a smart terminal that is powerful, durable and stable,

and it will provide you with full service in the retail store.


Retail Wireless QR-code Payment Mobile POS

Wireless Mobile POS TPS320


The New emerging POS TPS320 inherits the classic TPS300, which is robust and durable.

It is a performance monster with 3G/4G, WIFI, 2 or 4 SIM, NFC, 40mm printer, etc.

Smart POS TPS320 is highly scalable and can be used in retail, dining, and QR code payments.


Retail Wireless QR-code Payment Mobile POS


Android 7.0 OS

The performance of Mobile POS TPS320 is higher than the general level on the market

since it uses the Android 7.0 system (also called Android Oreo) or above system.

Mobile TPS320 is a Quad-Core processor with 1GB DDR+8GB eMMC.


Retail Wireless QR-code Payment Mobile POS

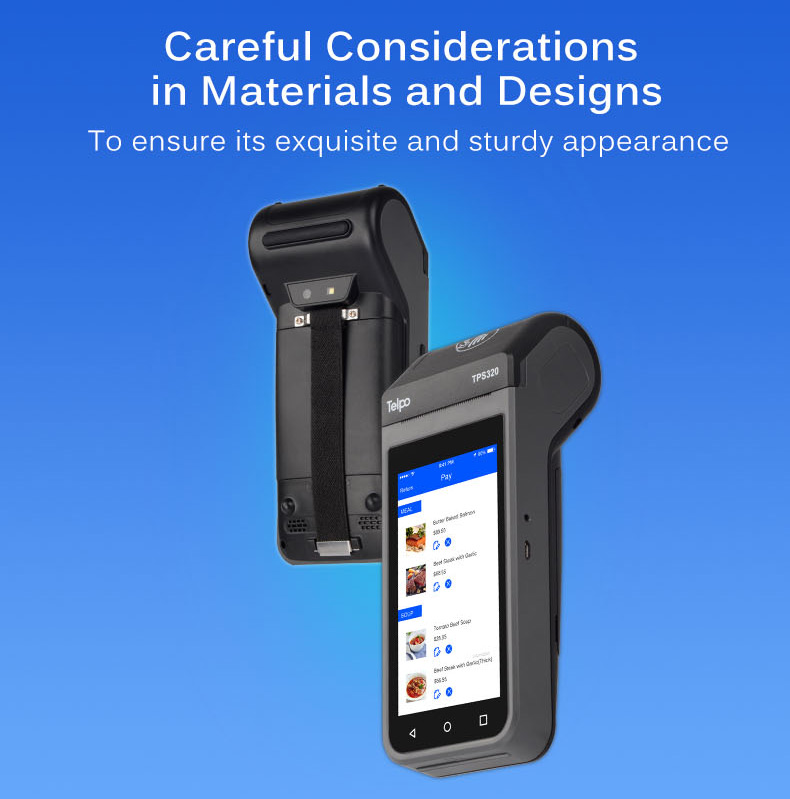

Exquisite and sturdy Design

5-inch touch screen displays a vivid image with lower power consumption.

Compact but utmost efficient.


Retail Wireless QR-code Payment Mobile POS


Speedy Barcode Reader


The TPS320 increases the speed of scanning code and accurately reads 1D and 2D barcodes.

It is a handy QR-code reader.


Retail Wireless QR-code Payment Mobile POS


Contactless Card Reader


Support ISO14443 Type A/B, Mifare, ISO18092 compliant.

 So it can read prepaid cards in the parking lots, outlets, restaurants.


Retail Wireless QR-code Payment Mobile POS


High-speed printer with 40mm roll diameter width


The thermal Printer ensures clear readability 58mm printing with printing speed increased by 10%.

Enjoy uninterrupted billing, no matter how long the queue is.


Retail Wireless QR-code Payment Mobile POS


Super Endurance


The large battery ensures continuous operation for one day,

and the standard battery capacity is 7.4V/2500mAH.

Lithium batteries can be extended to 7.4V, 5000mAH.

Retail Wireless QR-code Payment Mobile POS


A variety of accessories to facilitate your mobile work needs.

Elastic Wrist Strap, Sling hole For bag and 2 or 4 SIM cards.

The elastic wrist strap holds the product steadily and prevents falls.

The sling can make the wireless POS TPS320 easier to handle and store, or it can be hung inside the bag.

Multiple SIMs may store information for each account.


Retail Wireless QR-code Payment Mobile POS


Mobile Terminal TPS320 can be used for wireless seamless connection in multiple scenarios,

such as retail store product management;

ordering the food in a restaurant;

QR-code scanner in the supermarket

Lottery payment;






Specification

Specification


OSAndroid 7.0 or above
ProcessorQuad-Core 1.1GHz or above
Memory1GB DDR, 8GB eMMC, Ext. TF card   slot
2GB DDR, 16GB eMMC (Optional)
Display5-inch,   720*1280
KeypadSoftkeys
Thermal   PrinterPaper   width: 58mm, Φ40mm
Contactless Card Reader (Optional)ISO14443 Type   A/B, Mifare, ISO18092   compliant
Smart Card Reader (Optional)ISO7816
Fingerprint Scanner (Optional)ANSI/INCITS 378, ISO/IEC 19794-2,   ISO/IEC 19794-4
FBI, STQC certificate
Camera5M   Pixel, autofocus (Barcode software decoding)
SIM Slots2 SIMs
4 SIMs (Optional)
CommunicationsWCDMA/GPRS/WiFi/Bluetooth
LTE (Optional)
GPS   (Optional)Built-in
Peripheral Ports1 Micro USB, 1 DC Charge
Digital Audio   SpeakerBuilt-in
Power Supply5V/2A
Battery7.4V/2500mAh,Li-ion
7.4V/5000mAh,Li-ion (Optional)
Docking Station (Optional)Charging
EnvironmentalOperating temperature: -5℃ ~ 45℃
Storage temperature: -25℃ ~ 60℃
MDM (Optional)Mobile Device Management
CertificationCE,BIS
Reserve the right to change the parameters without prior notice
