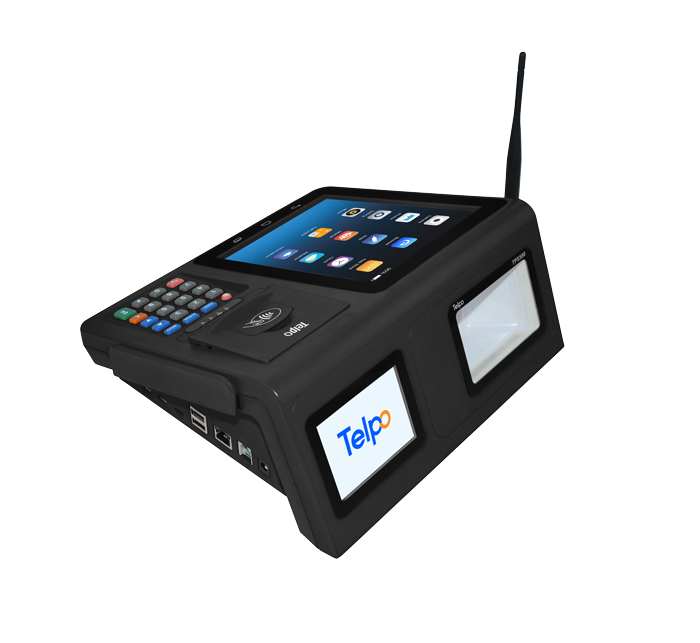

TPS575 stays the low-cost price and reliable quality but adds the software decoding camera and small dot-matrix LCD, which for showing customer information.
Using the software decoding camera will give you the advantage of no cash payment convenience, like the cell phone's QR code payment. Or you could directly use the cell phone to scan the small second screen's QR code content.
TPS575 is the best choice to upgrade your old-fashion terminal to a new generation.
TPS575 built-in 7-inch Touch Screen, with 1024*600 high-definition, great visual angle(178°). The second screen of Dot Matrix LCD is assembled, which saves space and is more beautiful.
TPS575 is also a smart barcode scanner, with 2Mpx fixed focus camera, accepting to read the barcode or mobile payment QR-code.
Mini Cash Register TPS575 adopts Android 7.0 OS or above. Quad-core 1.3Ghz CPU makes it easy to run all kinds of complicate applications, strong heart to run many applications at the same time (up to 10 applications). 1GB RAM and 8GB Flash can be extend to 32 GB.
Telpo can provide the SDK package and technical assistance if the customers need to second development.
Processor | Quad-Core 1.3GHz |
Memory | 1GB RAM, 8GB FLASH, Ext. TF(micro SD) card slot |
OS | Android 7.0 |
Display | 7", TFT 600*1024 |
Second Display | ○ Dot Matrix LCD,128*32 |
Keypad | 1 Power key |
Thermal graphics printer | Speed: 18 lines/sec; Paper width: 58mm; Φ50mm |
Camera | ○ 2M pixel(Fit for barcode scanning) |
Contactless card reader | ○ ISO14443 Type A/B, ISO18092 |
● Standard ○ Optional | Reserve the right to change the parameters without prior notice. |
SIM Slots | ● 1 ○ 2 |
Communications | ● GPRS/WCDMA/Ethernet/WiFi/ Bluetooth ○ 4G/GPS |
Peripheral Ports | 2 USB Host, 1 micro USB,1 RJ45 |
Audio | Digital audio speaker |
Power Supply | Input:100-240VAC;output:9VDC, 2.5A |
Battery | ● 7.4V, 2500mAh, Li-on |
Dimensions(mm) | 255.5*121*79mm |
Certification | CE |
MDM (Mobile Device Management) | ○ |
