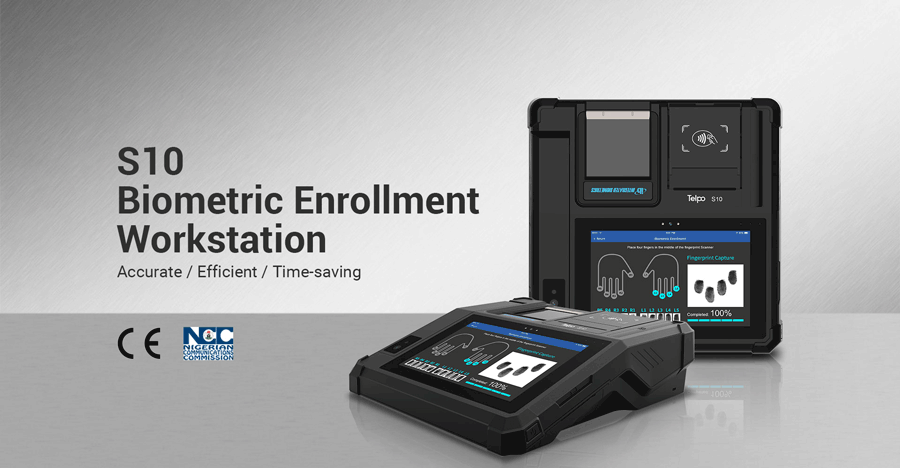

 Desktop Biometric FAP 60 Fingerprint Enrollment Workstation

S10

Desktop Biometric FAP 60 Fingerprint Enrollment Workstation


Desktop Biometric FAP 60 Fingerprint Enrollment Workstation



About Telpo S10 Biometric workstation:

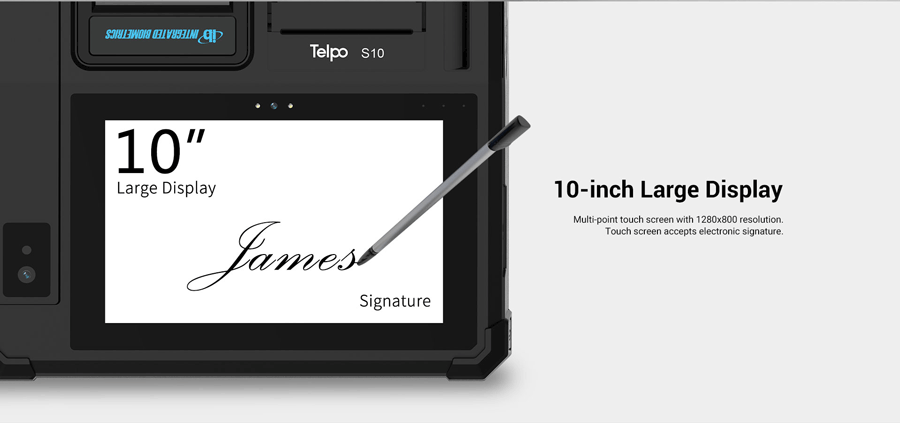

  1. 1. A 10-inch Large Screen: The 10-inch large screen is clear and readable for registering in the individual identification details like the name, age, address, etc.

  2. 2. All-in-One Biometric Identication: With 3 biometrics(Fingerprints, irises, face recognition) in 1 device, Telpo S10 provides a concentrate of Telpo's  biometrics expertise, enhancing match accuracy and security.

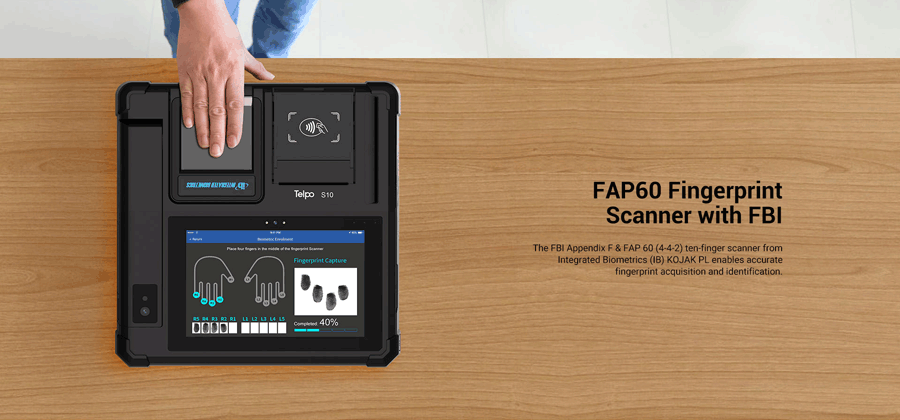

  3. 3. FBI certified FAP 60 Biometric Fingerprint Scanner: The top-of-the-range FAP60 fingerprint scanner from Integrated Biometrics (IB) KOJAK PL, equipped with IB's patented Light-emitting Sensor technology, provides low Power consumption of 10 fingerprint registering and identification.

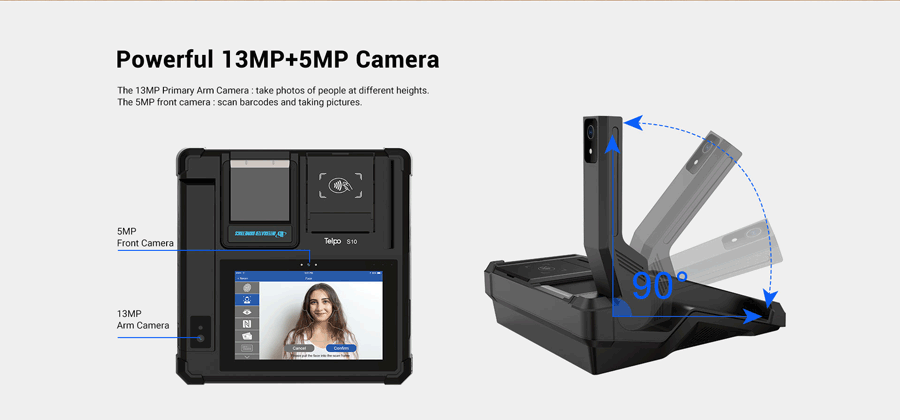

  4. 4. Adjustable Portrait Collection Camera:The fingerprint desktop terminal S10 can collects portrait photos, iris and finger biometrics. Its adjustable camera makes it easy to take photos of people at different heights.

  5. 5. 5MP Autofocus Screen Camera: The 5MP camera with dual flashes on the Telpo S10 screen can be used for scanning codes and taking pictures. In rigorous election and citizen registration matters, it is necessary to record and verify equipment operators.

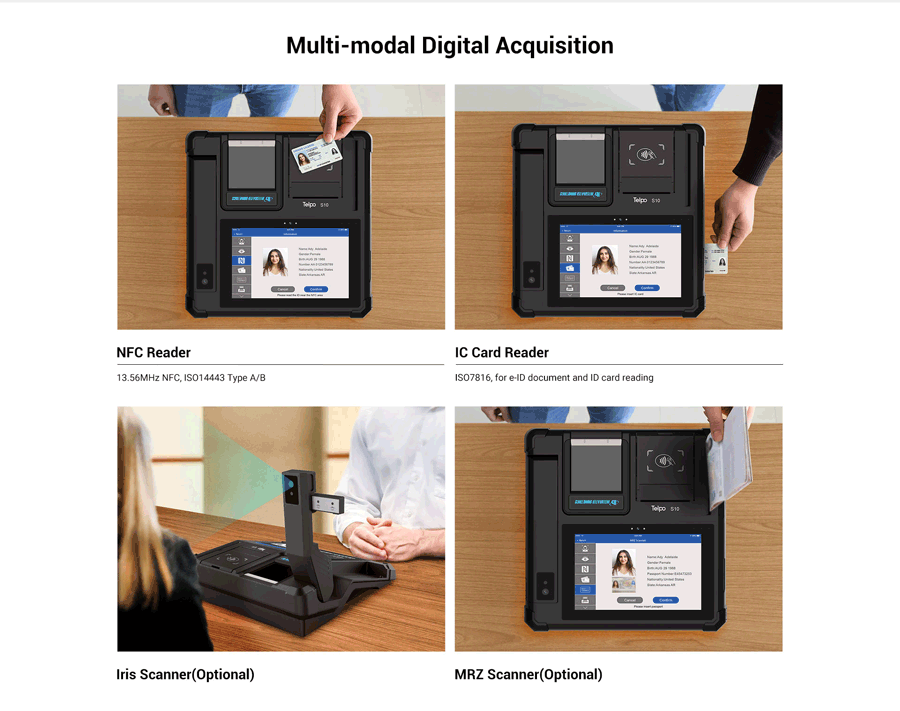

  6. 6. NFC reader: Supports contactless card reader (NFC/RFID) that in line with ISO14443 Type A/B, ISO18092, MIFARE, Felica, ISO15693 compliant operating frequency 13.56MHz.

  7. 7. MRZ scanner and IC card reader for e-Passport and e-ID document reading and ID card reading are available.

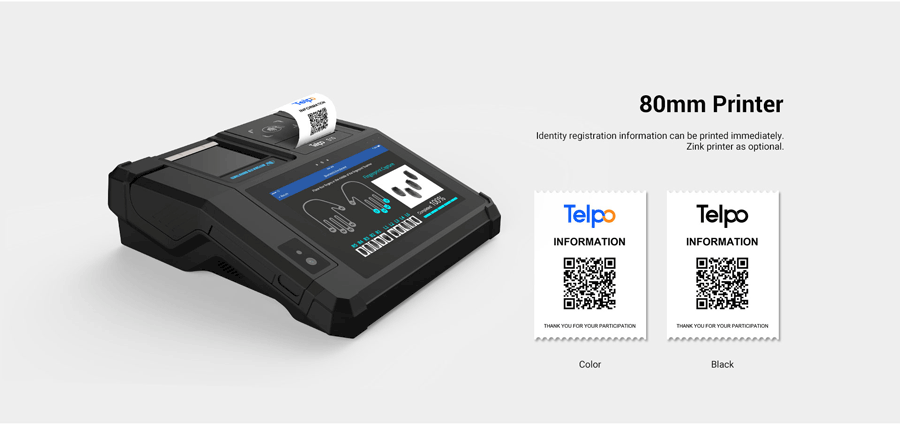

  8. 8. 80mm High-voltage Thermal Printer: Print more clearly in high-speed printers at high voltage. Identity registration information is printed and verified immediately



Desktop Biometric FAP 60 Fingerprint Enrollment WorkstationDesktop Biometric FAP 60 Fingerprint Enrollment Workstation

Desktop Biometric FAP 60 Fingerprint Enrollment Workstation

Desktop Biometric FAP 60 Fingerprint Enrollment Workstation

Desktop Biometric FAP 60 Fingerprint Enrollment Workstation

Desktop Biometric FAP 60 Fingerprint Enrollment Workstation

Desktop Biometric FAP 60 Fingerprint Enrollment Workstation

Desktop Biometric FAP 60 Fingerprint Enrollment Workstation

Desktop Biometric FAP 60 Fingerprint Enrollment Workstation

Desktop Biometric FAP 60 Fingerprint Enrollment Workstation

Desktop Biometric FAP 60 Fingerprint Enrollment Workstation



Specification


PERFORMANCE CHARACTERISTICS

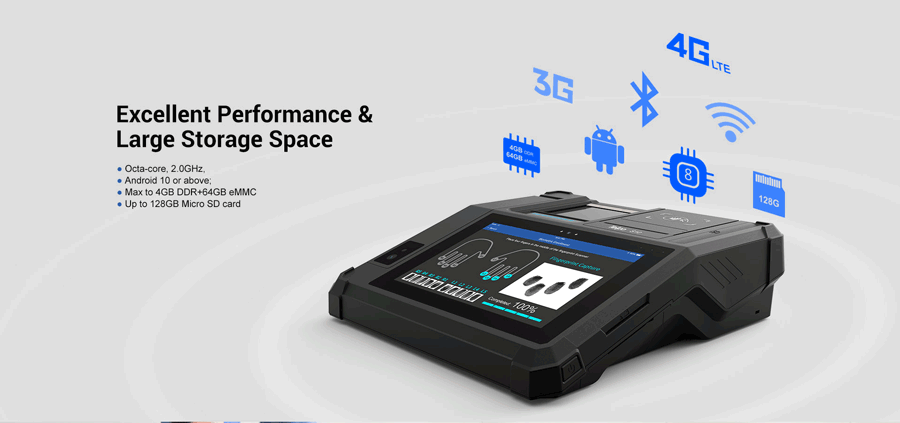

CPUOcta-core,   2.0GHz
OSAndroid   10 or above
Internal   Memory2GB + 16GB / 2GB + 32GB (Optional) / 4GB + 64GB (Optional)
ExpansionSupport   up to 128GB Micro SD card

PHYSICAL CHARACTERISTICS

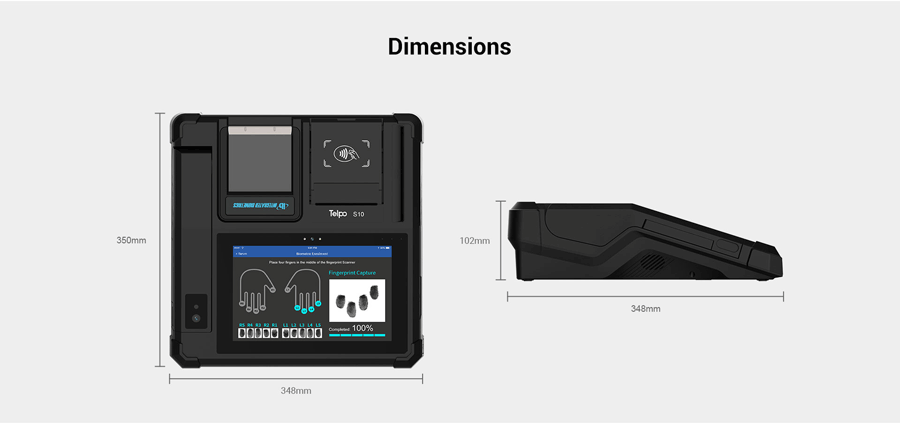

Dimensions(mm)350(L)*348(W)*102(H)
WeightApprox 3.3kg
Display &   Touch10-inch,   resolution 1280x800, support multi-touch

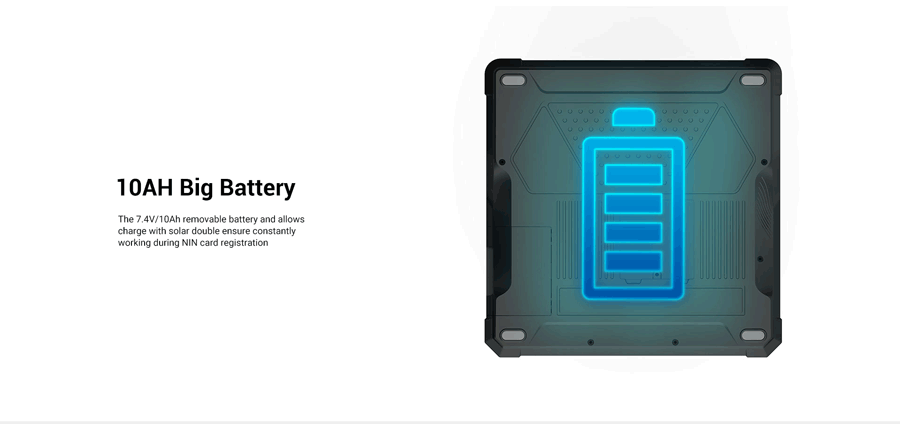

Battery7.4V/10000 mAh, Removable battery

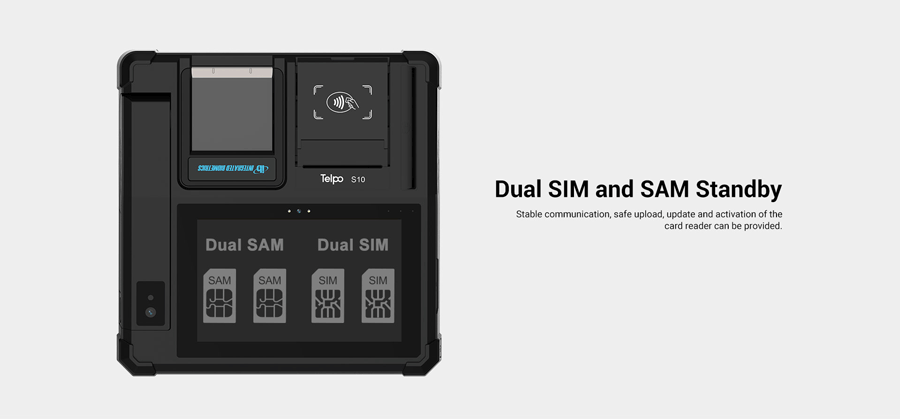

Expansion Slot1 x   Micro SD Card / 2 x Micro SIM Card / 2 x SAM Card (Optional)
Interfaces1 x   DC Charge / 1 x Micro USB / 1 x 3.5mm Audio Jack / 2 x USB Host / 1 x RJ45
AudioDigital Audio Speaker
Keypad1 Power Key
LED Status   IndicatorsNetwork / Power / Battery
Power Supply12V, Support external solar panel charging

USER ENVIRONMENT
Operating   Temperature-10°C   to 50°C
Storage   Temperature-20°C   to 60°C
Humidity5%RH   - 95%RH, Non-condensing
WIRELESS COMMUNICATIONS
WLANIEEE   802.11 a/b/g/n/ac
WWANLTE-FDD/LTE-TDD/WCDMA/GSM
Bluetooth5.0   BLE
GNSSGPS /   A-GPS, GLONASS, BeiDou

DATA CAPTURE
Front Camera   (Optional)5MP   Camera with Autofocus and LED Flash
Primary Arm   Camera13MP   Camera with Autofocus and LED Flash
Iris   (Optional)Support
Contactless   Card Reader (Optional)13.56MHz   NFC, ISO14443 Type A/B
Smart Card   Reader (Optional)ISO7816
Secure Element   (Optional)2 SAM Slots, ISO7816
MRZ Reader (Optional)Font   TypeOCR B
MRZ Lines1   line: IDL, CAN, etc
    2 lines: ID2 cards, ePP
    3 lines: eID
Thermal   Printer

Paper width 80mm, Φ80mm;

Zink Printer(Optional)

Fingerprint   ScannerTen-finger   (4-4-2) Biometric Scanner using LES (Light-emitting Sensor) Technology
FBI Appendix F & FAP 60
Sensing area: 81.28 mm x 76.30 mm
Resolution: 500 PPI

REGULATORY
Certification (Optional)CE, NCC
