7-inch Rugged Biometric Tablet

TPS470

7-inch Rugged Biometric Tablet

7-inch Rugged Biometric Tablet

Telpo TPS470 is a handheld biometric tablet with Android 7.0 OS, featuring biometric fingerprint identification, 1D/2D barcode scanner, NFC reader to provide multiple functions for various customers applications such as ID information collection, ID validator, logistics, voting, etc.


7-inch Rugged Biometric Tablet



Powerful CPU and Android OS

Biometric Tablet TPS470 uses Android 7.0 OS, Quad-core 1.3GHz CPU, and can be upgraded as needed. 1GB+8GB of storage can save enough users information and pictures. There is no pressure in running the general biometric software and wireless information interaction.


7-inch Rugged Biometric Tablet



Dual Camera

Mobile biometric Tablet TPS470 has dual-camera. It's easy to switch the camera and capture the target. For example, police mobile law enforcement can easily switch shots to capture evidence or collect suspect information. For example, the factory can quickly switch lenses, grab product barcodes and get information. Zkteco fingerprint reader

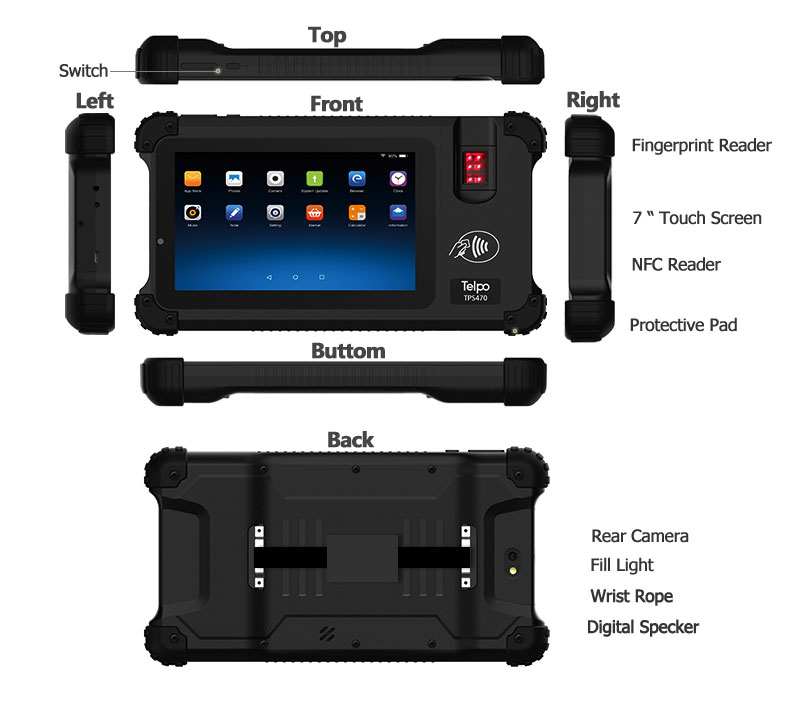

Ergonomic Design, Drop-proof Design

Biometric Tablet TPS470 is in the ergonomic design. Its black casing is resistant to dirt and wear. Four protective pad strengthed his firmness.  It can keep stable running even dropped from 1.5m on 6 sides.


Comfortable Grip

The curved design makes holding more comfortable. With a 7-inch screen, the TPS470 is lighter and more portable.

7-inch Rugged Biometric Tablet

Fingerprint Reader

Fingerprint reader Tablet TPS470 supports built-in fingerprint comparison algorithm to achieve 1:1 alignment.

As a outstanding biometric tablet, TPS470 support all kinds of fingerprint scanner such as TCS1/TCS2 or FAP10/FAP20, PIV/STQC certificated.


7-inch Rugged Biometric Tablet

Overall Network Coverage

Factory Android tablet TPS470 can support 3G/2G/WIFI/Bluetooth/GPS, etc.


Wrist Strap

The shatter-resistant wrist strap of Android tablet TPS470 protects your hands from injury. It is more facilitated to carry.


More functions

Moreover, Telpo tablet TPS470 supports NFC Reader, Barcode/ QR-code recognition. It can extend functions such as recognizing facesirisrecognition, voice recognition, and more. If demand, please contact us.



Application


Android tablet TPS470 can be used in office or warehouse access control system, police mobile law enforcement, examination system examinee registration and identification, logistics system mobile office, restaurant self-service meal ordering system, etc.


Ingress Protection / Logistics / Member Management / Biometric Identification / Warehouse Control  / Voting…

7-inch Rugged Biometric Tablet

Specification

7-inch Rugged Biometric Tablet



ItemTPS470
OSAndroid 7.1 or above
ProcessorQuad-Core 1.1GHz or   above
Memory1GB   DDR, 8GB eMMC, Ext. TF card slot
2GB DDR, 16GB eMMC (Optional)
Display7-inch, 1024*600
Contactless   Card Reader (Optional)ISO14443 Type A/B,   Mifare
Fingerprint   Scanner (Optional)FBI   PIV / FBI Mobile ID FAP20
Sensing Area: 15.24mm x 20.32mm
Resolution: 500 DPI
Camera2MP,   fixed focus (Front) + 5MP, auto focus (Rear)
5MP, fixed focus (Front) + 8MP, auto focus (Rear) (Optional)
SIM Slots2 SIMs
CommunicationsLTE/WCDMA/GPRS/WiFi/Bluetooth
Ethernet (Optional)
GPS   (Optional)Built-in
Peripheral   Ports1 Micro USB, 1 DC Charge, 1 Audio Jack
1 USB, 1 RJ45 (Optional)
AudioDigital Audio Speaker, Microphone
Power Supply5V/2A
Battery5000mAh,   Li-ion
8540mAh, Li-ion (Optional)
Dimensions   (mm)270 (L)*147 (W)*33   (H)
EnvironmentalOperating   temperature: -5℃ ~ 45℃
Storage temperature: -25℃ ~ 60℃
MDM   (Optional)Mobile Device  Management
CertificationCE,BIS
